Australian HDPE Pipes: Standards, Color Codes, and Market Applications Explained

What Standards Are Used for Australian HDPE Pipes?

Australian HDPE pipes do not follow U.S. standards (ASTM/AWWA), instead it adhere to the independent Australia/New Zealand standards system (AS/NZS). Technically, this standards system is more closely aligned with the ISO and European EN systems.

Its Key standards include:

Standard Number    Content

AS/NZS 4130    Product standard for HDPE pressure pipes

AS 4129    Standard for pipe fittings

AS/NZS 4131    Standard for raw materials

Pipes are designated by material grade as PE 80 or PE 100, which is entirely different from the naming conventions commonly used in U.S. standards, such as PE2406, PE3408, and PE4710. Dimensions are specified using metric outer diameters (e.g., 110 mm, 315 mm) combined with SDR (Standard Dimension Ratio), and pressure ratings are denoted by PN (bar); in contrast, U.S. standards use imperial units (IPS/DIPS) combined with DR, and pressure is measured in psi.

Therefore, the Australian project will not directly accept HDPE pipes manufactured to U.S. standards. Compliant products must bear the AS/NZS 4130 or AS/NZS 4131 certification mark.

How does AS/NZS 4130 relate to ISO 4427

The two are not simply “different”; rather, AS/NZS 4130 incorporates localized adjustments and additions based on the ISO 4427 framework, and the two standards are highly compatible on a technical level.

Cross-Reference Relationship of those standard:

Equivalent Test Methods: International test standards referenced by ISO 4427 (such as ISO 1167 for internal pressure testing) are considered equivalent or direct substitutes in AS/NZS 4130.

Fitting Design Reference: The dimensional tolerances and pressure drop calculations for non-standard pipe fittings explicitly reference the requirements of ISO 4427-3.

Dual Product Certification: Many pipe certificates intended for international markets list both ISO 4427 and AS/NZS 4130.

Key Localization Differences:

Broader Scope of Application: ISO 4427 primarily focuses on water supply, pressurized drainage, and sewage; AS/NZS 4130 also explicitly covers gas and compressed air.

Size Series: AS/NZS 4130 includes Series 1 (ISO outer diameter series) and Series 2 (cast iron pipe outer diameter series), the latter is used to ensure compatibility with Australia’s existing cast iron pipe networks.

Additional Performance Requirements: There are explicit testing requirements for resistance to slow crack growth (SCG) and rapid crack propagation (RCP), which serve as key criteria for material selection in high-pressure gas and specific water transmission applications.

Color and Stripe Regulations: Australia’s “Color Code”

The core logic behind Australia’s color regulations for HDPE pipes aligns with international standards (using color to distinguish applications), but specific color codes and color schemes exhibit distinct local characteristics.

Australia’s Core Color Rules:

Drinking Water Blue, or black pipe with blue stripes

Gas Yellow

Reclaimed Water Light Purple (Lilac)

Pressurized Sewage Cream, or black pipes with cream stripes

Differences from Other Markets:

North America: The core logic is consistent (yellow = gas, blue = water, purple = reclaimed water, green = sewage), but U.S. standards commonly use purple, while Australia uses lilac; Australia’s cream-colored pressurized sewage pipes are a unique identifier. U.S. standards sometimes specify the number of stripes (e.g., at least 3 blue stripes).

Europe: Black pipes are the absolute norm, and the number, spacing, and even width of the stripes are strictly regulated (e.g., at least 3 evenly spaced stripes, with a spacing between double stripes of ≤5 mm ± 2 mm) to ensure visibility from any angle within the trench.

A technical detail: The latest revision of AS/NZS 4130 requires that stripes be “opaque” rather than “solid.” This is because stripes that are too “solid” result in an overly sharp boundary with the black pipe material, which may lead to poor adhesion or premature cracking. “Opaque” more accurately describes the state of uniform mixing between the two materials at the interface.

Which HDPE pipe application is most widespread in the Australian market?

Municipal water supply ranks the first.

Industry data shows that polyethylene pipes account for approximately 85% of Australia’s urban water supply infrastructure, a position of very solid dominance.

Why is that ?

Addressing the inherent need for “water security”: Australia is one of the driest continents in the world, making the prevention of water loss a top priority for water supply networks. Joints formed by heat-fusion butt welding in HDPE pipes offer high strength and excellent sealing, achieving virtually “zero leakage.

A massive wave of infrastructure renewal: The underground water supply networks in many Australian cities are aging and in need of renewal, leading to a significant increase in government-led public works investment. HDPE pipes have a long service life and are corrosion-resistant, which can significantly reduce long-term maintenance and operational costs.

Ease of Installation and Adaptability to Complex Environments: Australia is vast and sparsely populated, and the installation of new pipeline networks on the outskirts of cities and in remote areas often involves complex terrain. HDPE pipes are highly flexible and can be installed using trenchless technologies (such as horizontal directional drilling), minimizing damage to road surfaces—a particularly cost-effective solution in Australia, where labor costs are high.

Other Key Application Areas:

Agricultural Irrigation: Faced with recurring droughts, water conservation is a matter of survival for Australian agriculture. The leak-proof joints and high-pressure resistance of HDPE pipes make them ideal for drip and sprinkler irrigation systems.

Mining and Industry: Australia has a well-developed mining industry, and HDPE pipes are widely used for slurry conveyance, mine dewatering, and chemical processing. They can withstand the abrasiveness of ore and corrosive chemicals, and their light weight and quick installation make them suitable for harsh operating conditions in remote mining areas.

PUHUI INDUSTRY: AS/NZS 4130-Compliant HDPE Pipes for the Australian Market

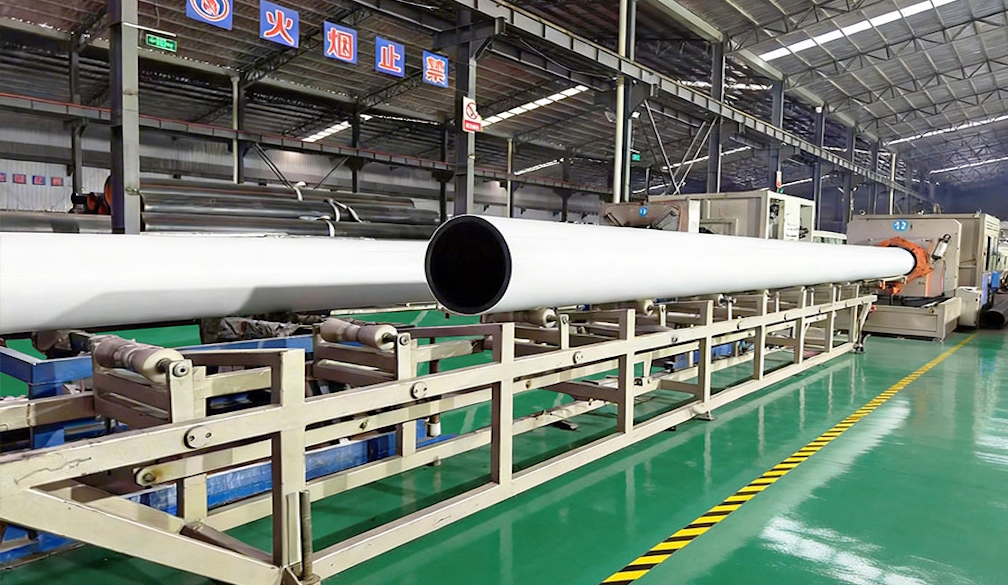

PUHUI INDUSTRY manufactures HDPE pipes that fully comply with the AS/NZS 4130 standard, providing Australian customers with a reliable, locally compliant solution for their pipeline projects.It has delivered quite a lot HDPE white mining pipes to Australia. These pipes are specifically designed to meet the demanding requirements of the Australian mining sector, where white piping is often preferred for above-ground slurry and water transport due to its superior heat reflection and visibility in harsh, sun-exposed environments.

With AS/NZS 4130 certification, PUHUI INDUSTRY's pipes are fully accepted by Australian projects, ensuring compliance, performance for clients across the water supply, mining, and industrial sectors.

To sum up, the Australian HDPE pipe system is an independent standards framework centered on AS/NZS 4130, technically highly compatible with ISO 4427 but with localized extension as well.  It features refined color coding tailored to local needs (particularly lilac reclaimed water pipes and cream pressurized sewage pipes), and its market is absolutely dominated by municipal water supply, followed by agricultural irrigation and mining. This system both aligns with international practices and deeply reflects Australia's national characteristics: drought-prone climate, developed mining industry, and high labor costs. For suppliers like PUHUI INDUSTRY, AS/NZS 4130 certification is the key to unlocking this demanding yet rewarding market.
