Heat Shrink Tubing: An Essential Guide for Cables and Wires

Heat shrink tubing is a versatile solution commonly used to protect, insulate, and organize cables and wires. It plays a vital role in electrical systems by offering durability, safety, and a neat appearance. We will examine the definition of heat shrink tubing, its many uses, its advantages, and its proper usage in this guide.

What is Heat Shrink Tubing?

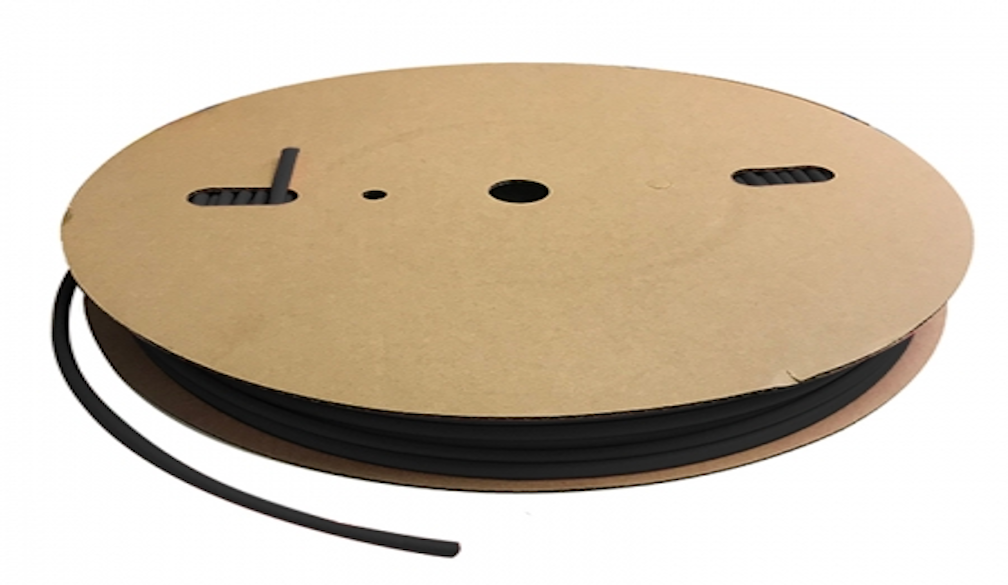

Heat shrink tubing is a shrinkable plastic tube placed over cables, wires, or other components and then heated to create a tight, protective seal. It is commonly made from materials such as polyolefin, PVC, or fluoropolymer, chosen for their flexibility, durability, and resistance to environmental factors.

Once heat is applied, the tubing contracts to conform to the shape of the underlying component, providing a snug fit and insulation. Flame retardant heat shrink tubing is another unique kind of tubing that provides increased safety in hazardous situations. This makes it an essential component in various industries, including automotive, aerospace, electronics, and telecommunications.

Uses for Heat Shrinking Tubing

Heat shrink tubing serves a wide range of purposes, including:

1. Electrical Insulation: Protects wires and cables from short circuits and electrical interference.
2. Strain Relief: Provides mechanical support and reduces stress on wire connections, prolonging their lifespan.
3. Cable Repair: Covers damaged or frayed cable insulation to restore functionality and safety.
4. Environmental Protection: Shields cables and wires from moisture, dust, chemicals, and UV radiation.
5. Color-Coding: organizes and identifies cables easily by using heat shrink tubing in different colors.
6. Bundling Wires: Neatly groups multiple wires, improving cable management and reducing clutter.



Benefits of Using Heat Shrink Tubing

Heat shrink tubing offers several advantages that make it a preferred choice for cable and wire management:

1. Durability: resistant to abrasions, cuts, and environmental hazards, ensuring long-term reliability.
2. Versatility: To accommodate diverse applications, it is offered in various sizes, colors, and materials.
3. Cost effectiveness: Reduces the need for frequent cable replacements by providing protection and repair.
4. Easy Application: It is easy to use with simple tools like a lighter or heat gun.
5. Professional Finish: Enhances the appearance of cable assemblies, providing a clean and organized look.



How to Use Heat Shrink Tubing

Using heat shrink tubing is a straightforward process. Follow these steps for effective application:

1. Measure and Cut:
• Measure the length of the area you want to cover and cut the tubing accordingly, allowing for slight overlap.
2. Slide Over:
• Slide the tubing over the cable or component you want to protect. Ensure it’s properly positioned.
3. Apply Heat:
• Use a heat gun, lighter, or similar tool to apply heat evenly to the tubing. Keep the heat source at a safe distance to avoid damage.
4. Inspect:
• Allow the tubing to cool and inspect the seal to ensure it’s snug and secure.



Frequently Asked Questions About Heat Shrink Tubing

What sizes of heat shrink tubing are available?

Heat shrink tubing comes in various diameters and shrink ratios, typically ranging from 2:1 to 4:1, to fit different cable sizes.

Can heat shrink tubing be used outdoors?

Yes, many types of heat shrink tubing are designed for outdoor use, offering UV and weather resistance.

Is heat shrink tubing flame-retardant?

Some heat shrink tubing options are flame-retardant, making them suitable for high-safety applications.

Can I remove heat shrink tubing after application?

While it’s possible, removing heat shrink tubing often requires cutting, which may damage the underlying cable.

What tools are needed to apply heat shrink tubing?

A heat gun is the most effective tool, but a lighter or hair dryer can also be used in some cases.

Heat shrink tubing is an indispensable tool for anyone looking to protect, organize, and enhance the performance of their cables and wires. Its versatility, durability, and ease of application make it a go-to solution across industries. Always choose heat shrink tubing that are RoHS compliant and UL-listed. You can guarantee the longevity, safety, and effectiveness of the electrical system by being aware of its advantages and using it appropriately.
